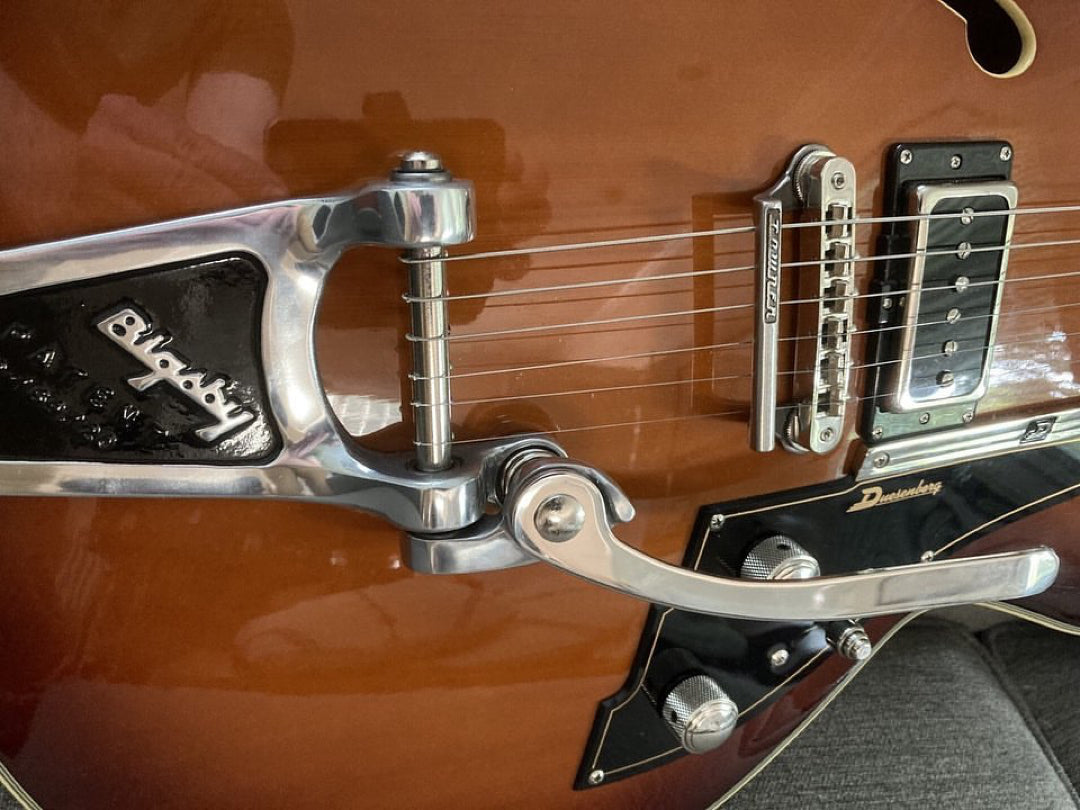

Your #1 Bigsby Retrofit System by TOWNER includes:
• TOWNER String Tension Bar
• 2 Felt Pads
*NOT for use with floating bridges.
*EPIPHONE and other import Guitars: Since Epiphone has been inconsistent in the size of the bridge posts. You may have to widen the hole of the feet of the string tension bar to fit some bridge post widths. However, not ideal for gold plating. The other solution I can offer is converting to the M8 bridge posts and the ABR-1 bridge.
I have also learned that the bridge posts I have are better than the stock bridge posts Epiphone and other import guitars use. Because the bridge post screws all the way down to the wood which makes for better tone in the guitar.

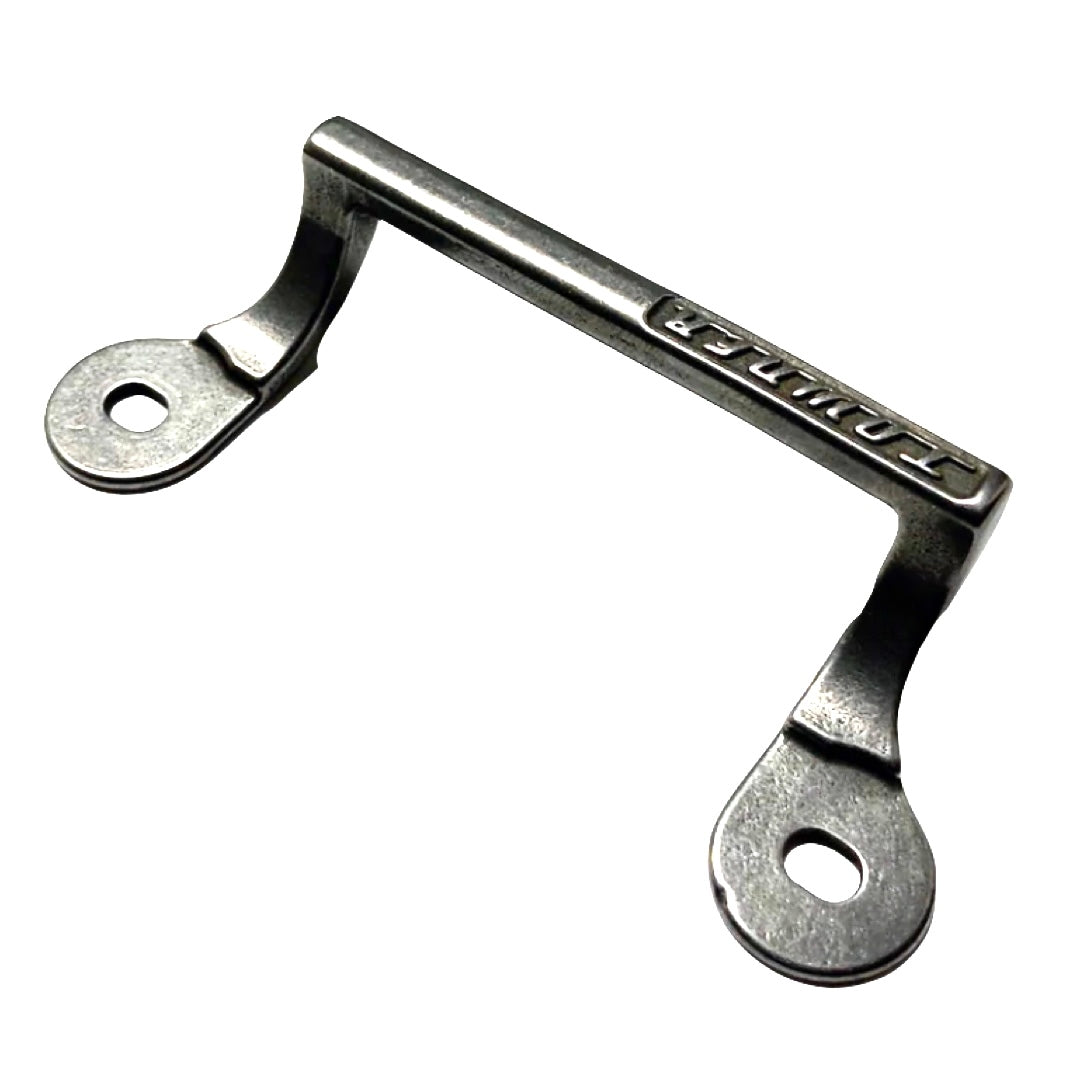

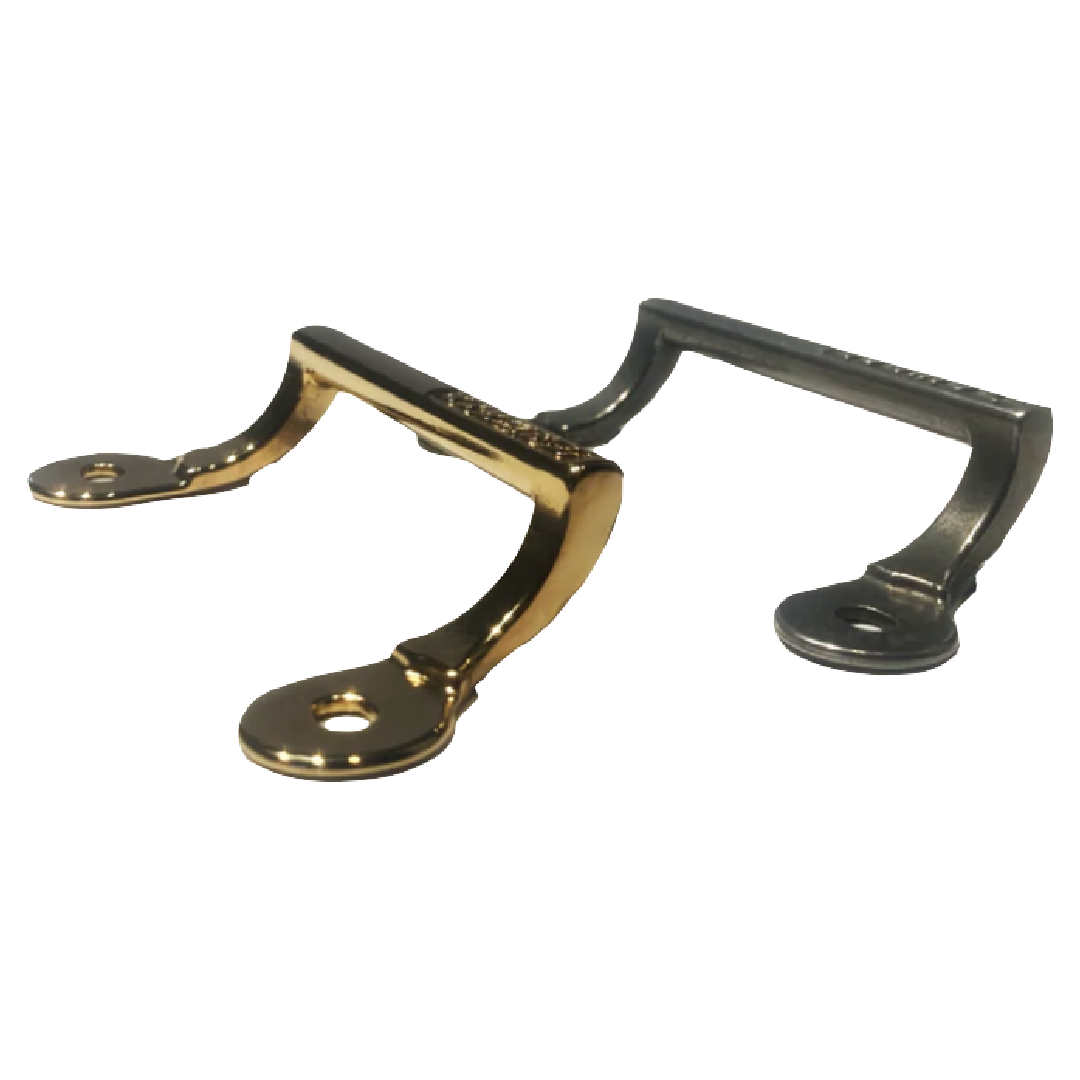

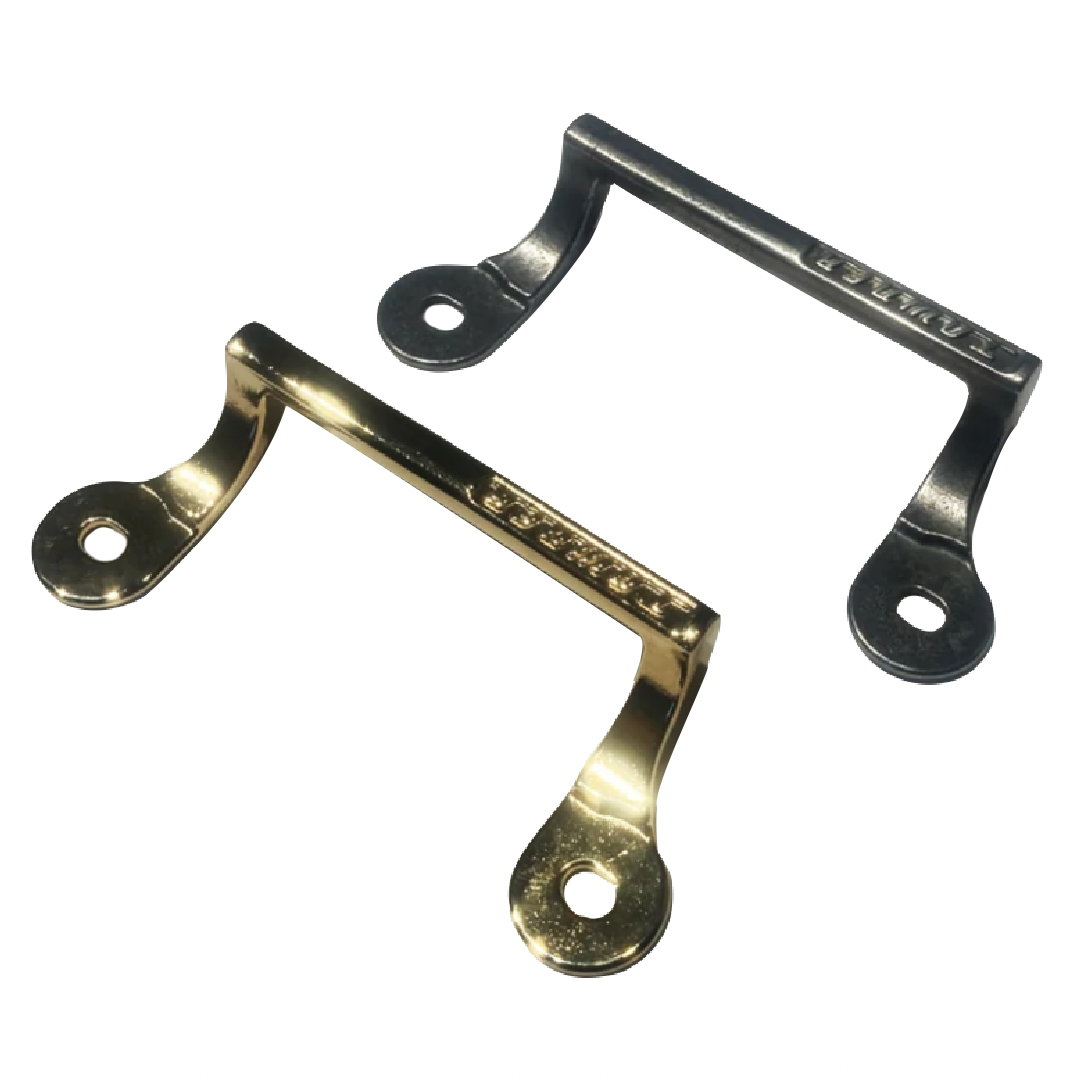

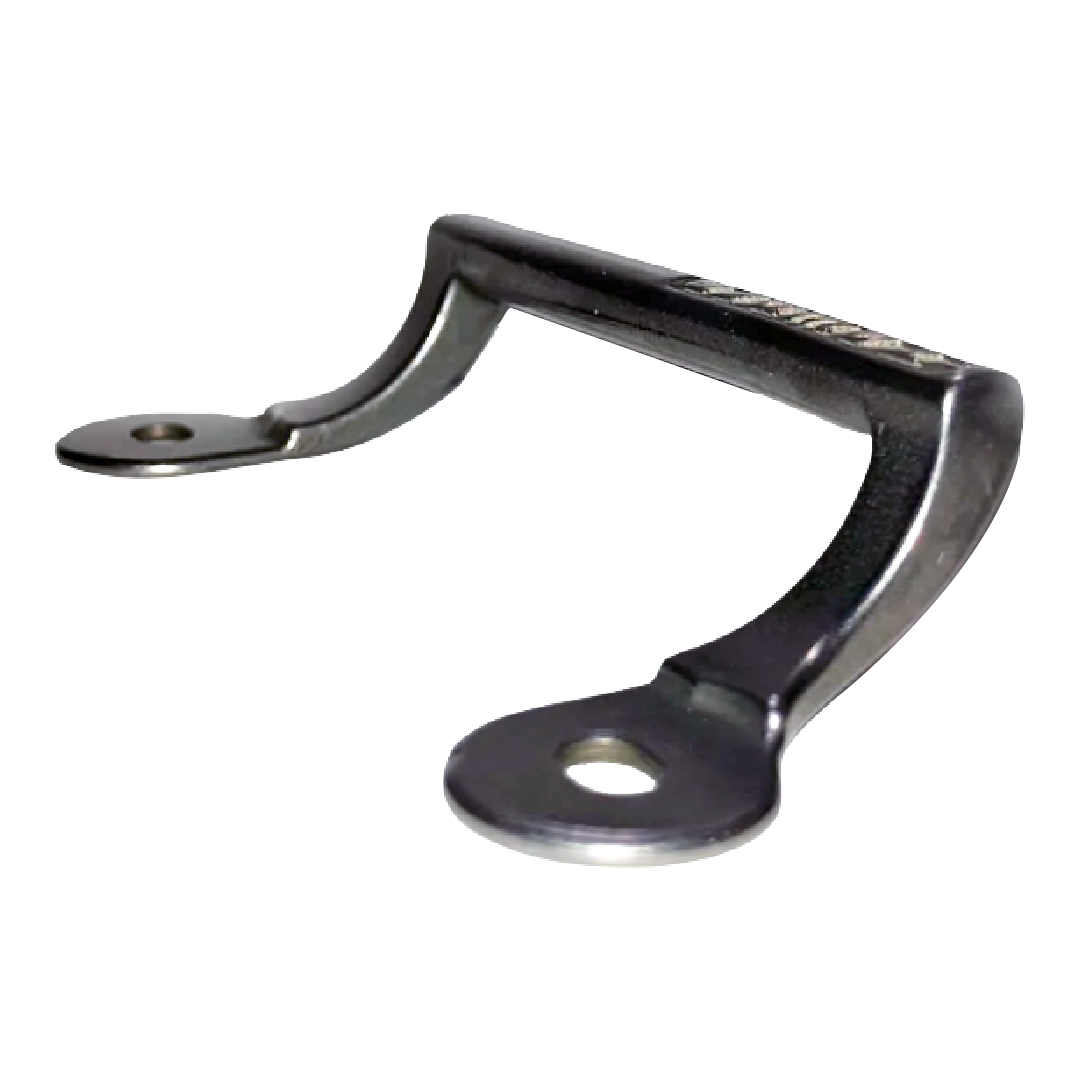

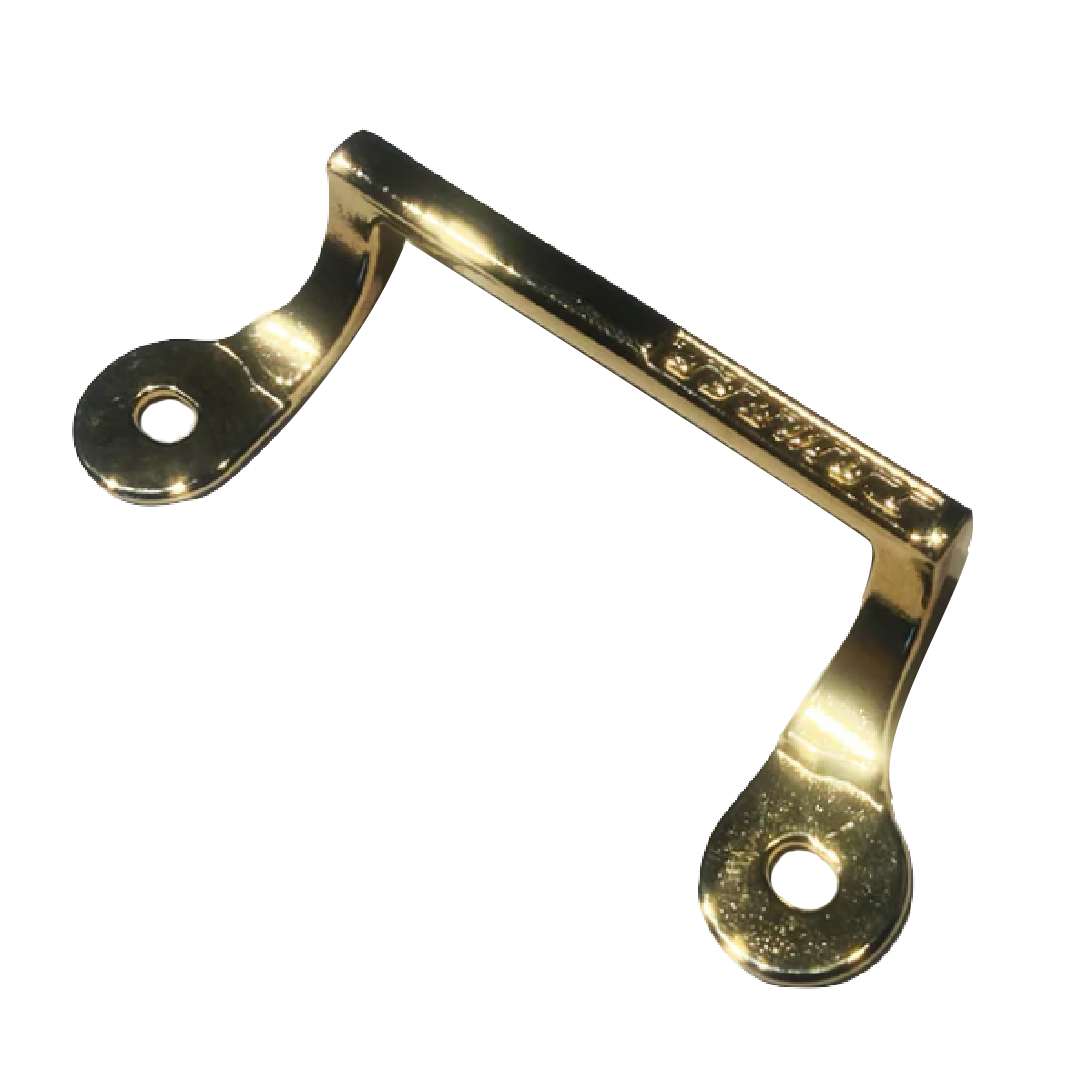

TOWNER String Tension Bar

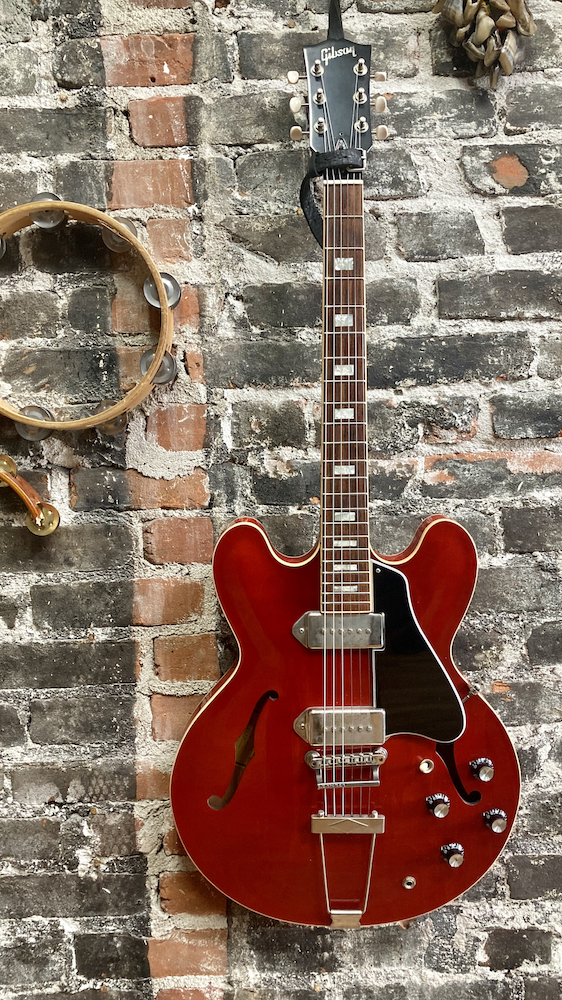

The TOWNER String Tension Bar helps to manage your guitars string tension for low bridge heights and sustain, recommended for guitar models with frequensator tailpiece or trapeze tailpieces (NOT FOR USE WITH FLOATING BRIDGES).
For years, guitarists with trapeze setups have asked me to make a string tension bar to provide string tension because their bridge height and string setup have low action. The new TOWNER String Tension Bar provides the necessary tension to keep your strings in place.

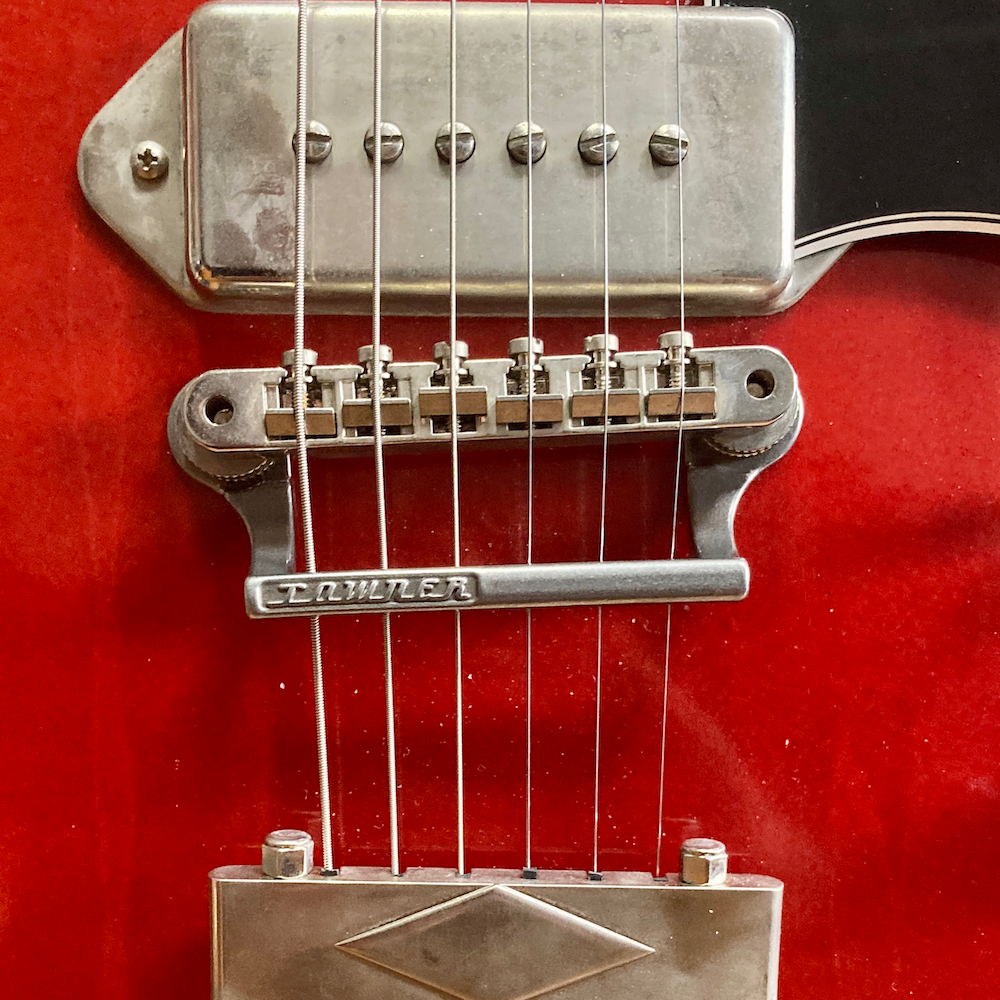

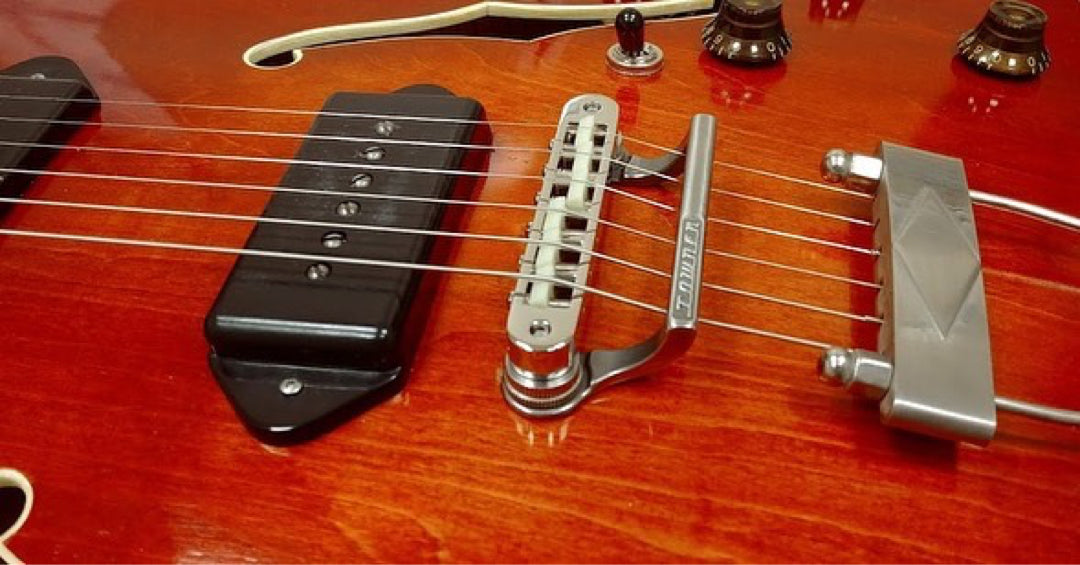

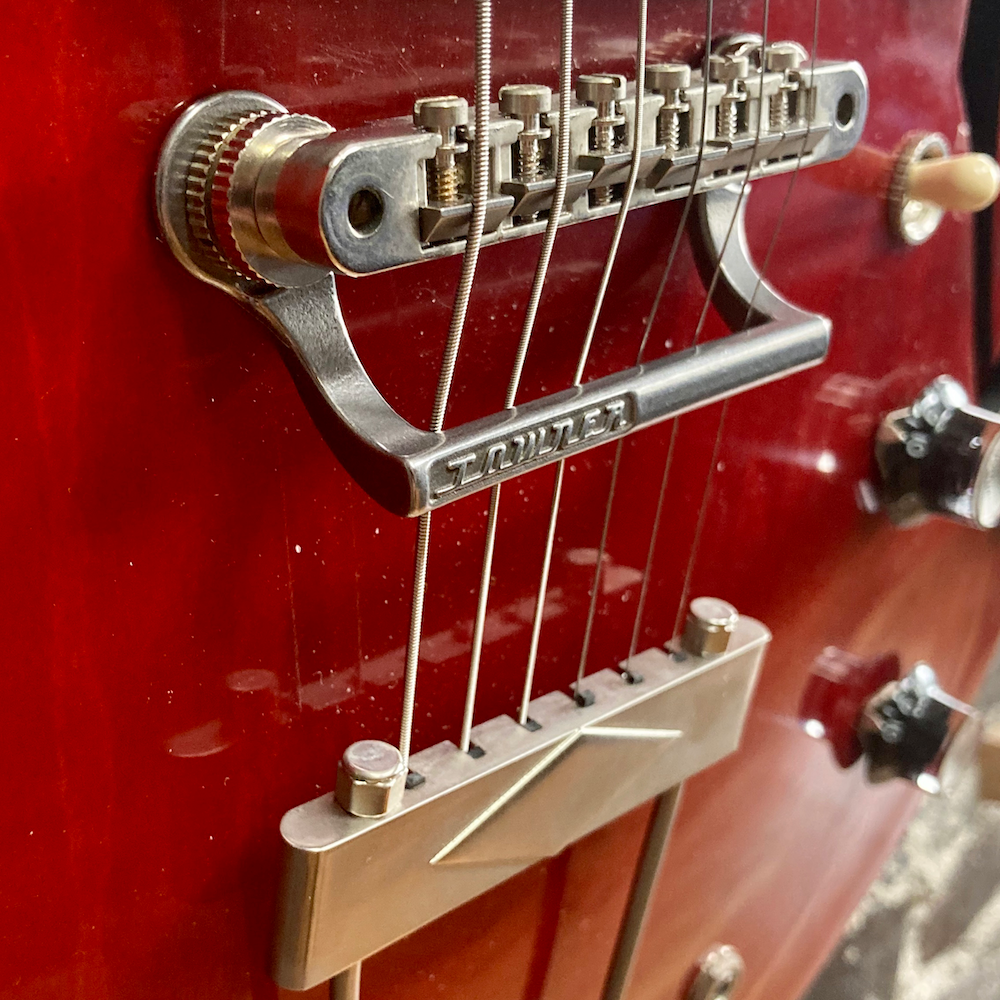

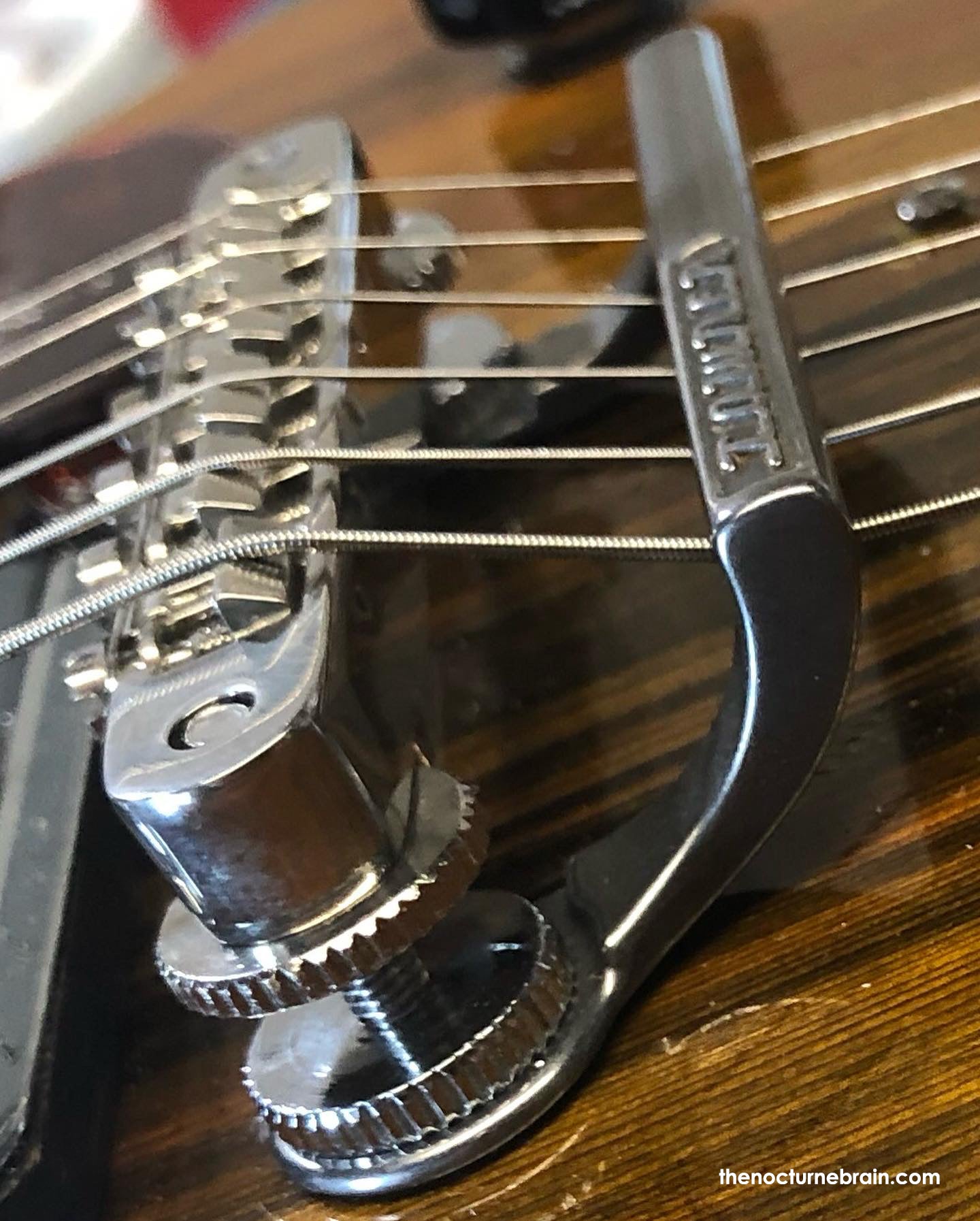

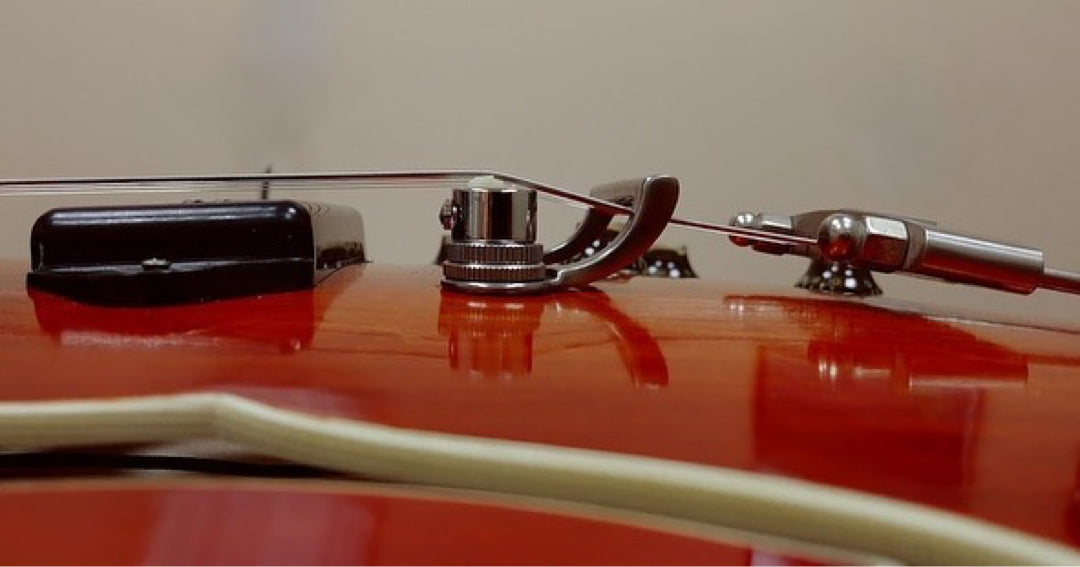

Under the Tune-o-Matic, ABR-1 or Nashville bridge posts use at least one pair of thumbwheels to firmly hold the string tension bar in place, SEE PHOTOS ABOVE in GALLERY.

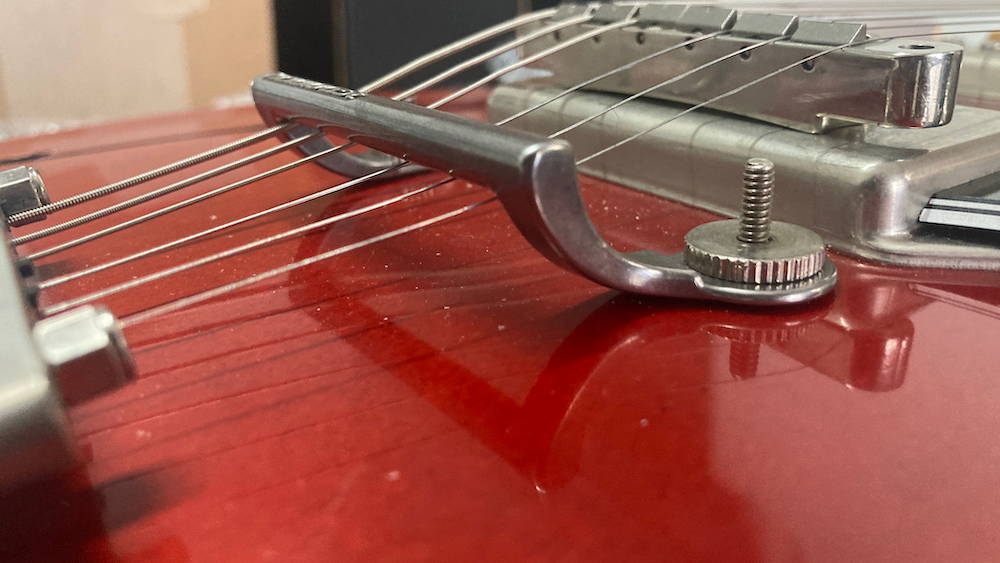

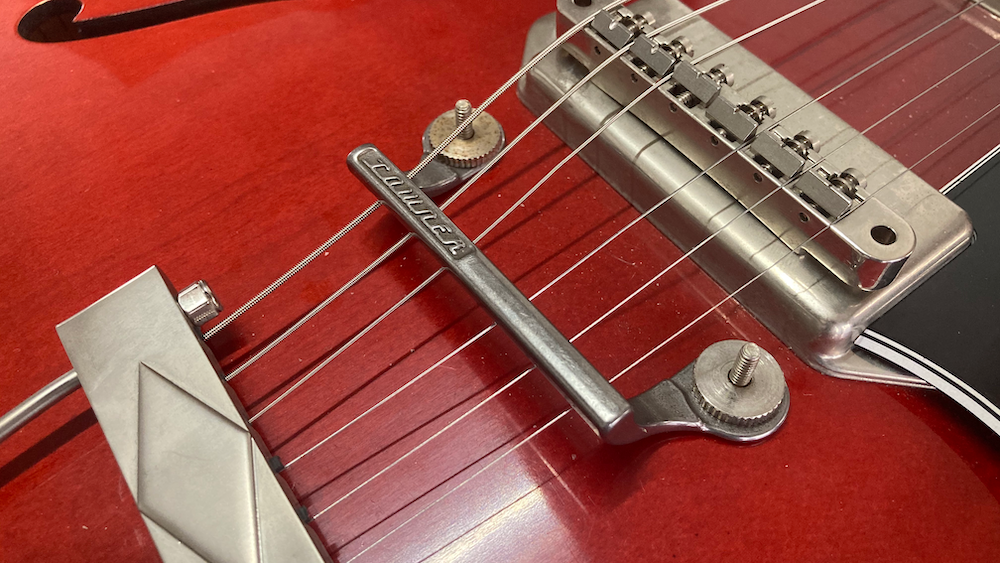

The reason for the 2 thumbwheels is to have one pair hold the STB in place and the other two to manage the height of the bridge.

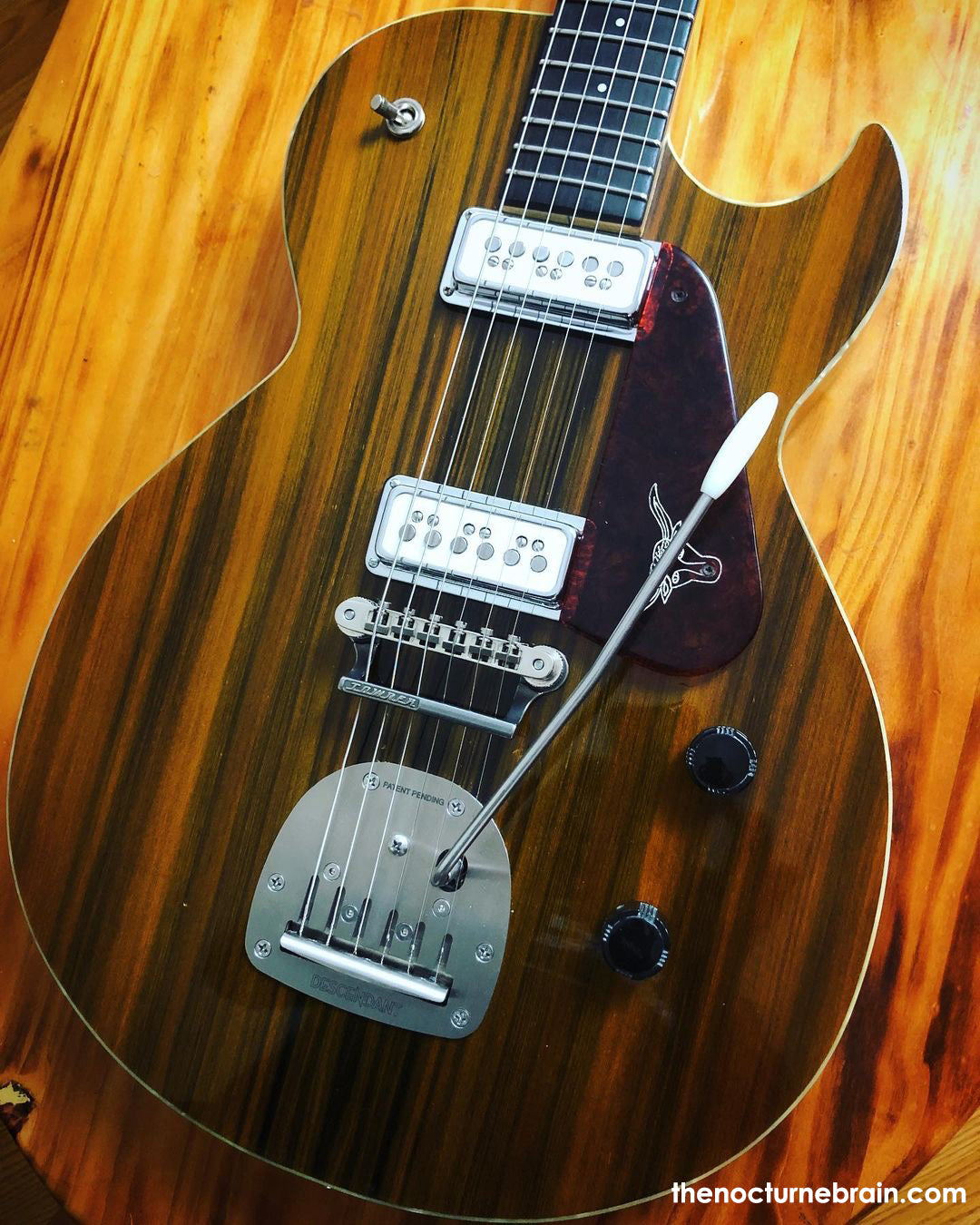

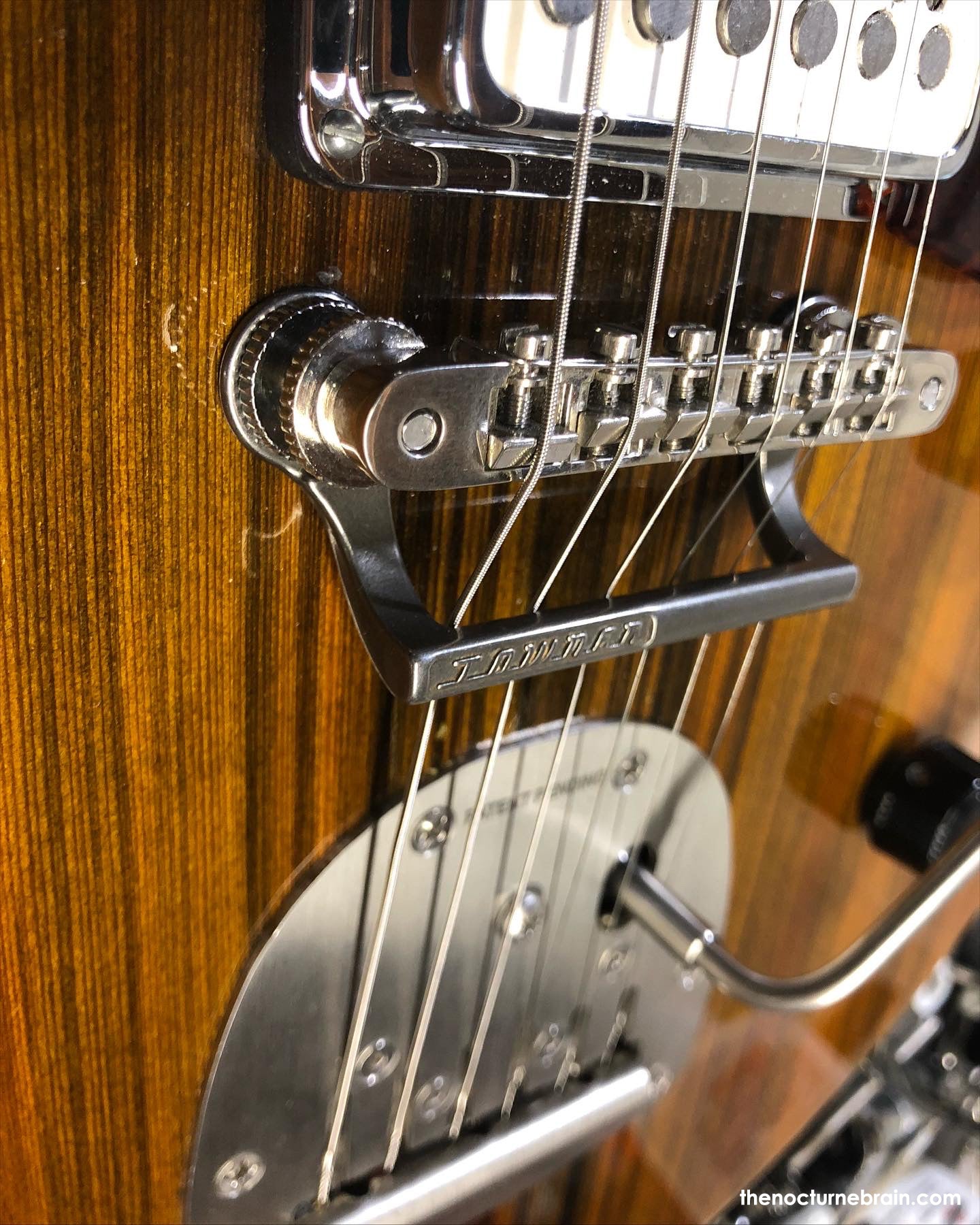

The TOWNER String Tension Bar also works with Jazzmaster vibratos, see photos above.
